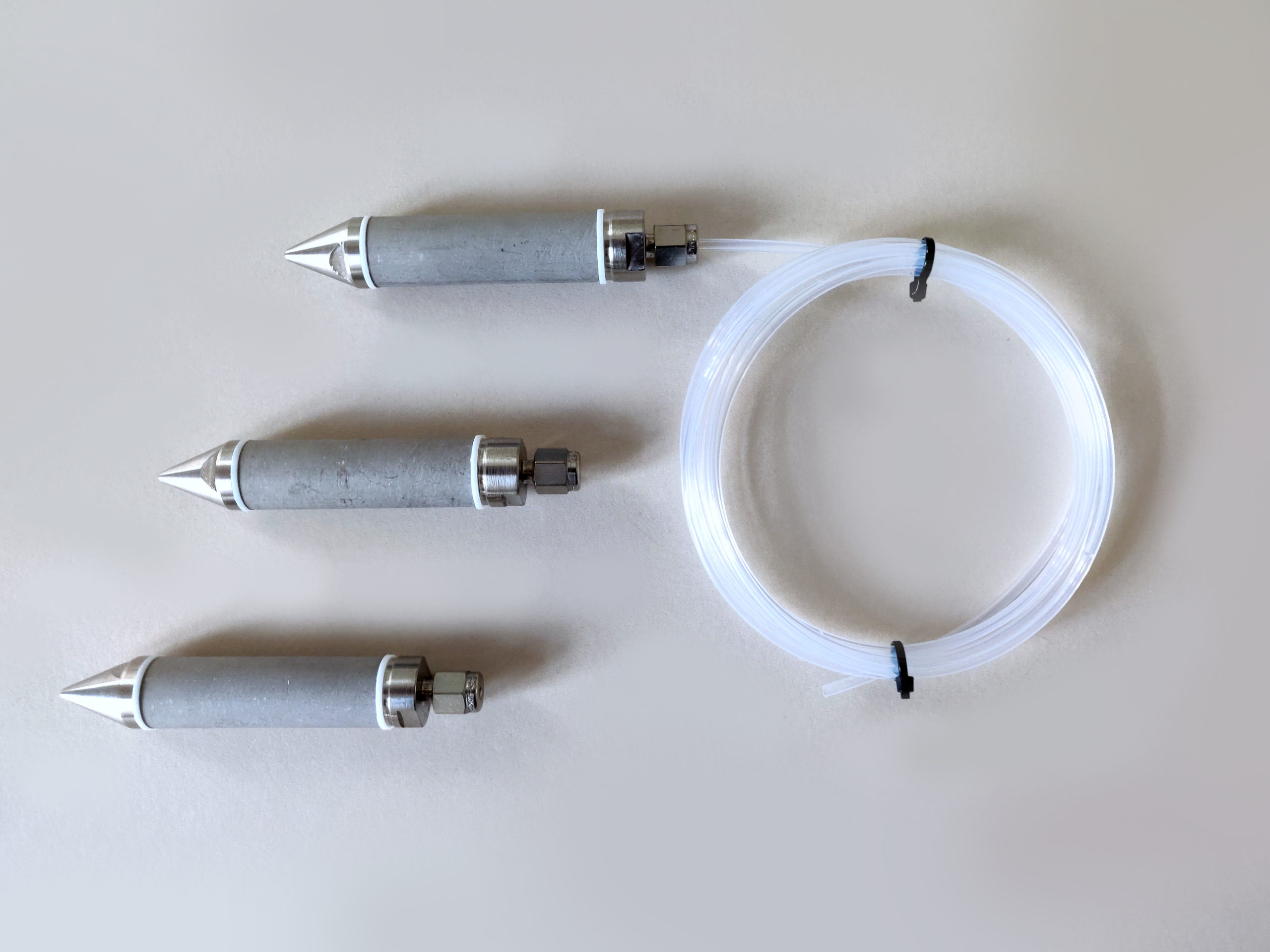

Steel suction cells

Suitable for organic and most inorganic contaminants.

• Stainless steel (316L SS)
• Pore size: avg. 0,2 µm, max. 0,5 µm
• Porous area: 40 cm²
• Length of porous area: 61-150 mm
• Bubble pressure: > 1.000 mbar
• Efficiency in water: 20-30 ml/cm²/hour (-600 mbar)
• As standard supplied with 2 m of FEP/Teflon tube*, 1/8”. Can be mounted without tube or with other tube lengths and tube materials.

Available in two sizes respectively:

• Standard: OD 19,5 mm, length: 110 mm
• Large: OD 19,1 mm, length: 200 mm

*If sampling for PFAS, the samplers can be optimized for this purpose by replacing gaskets and tubing with materials that do not lead to contamination of the sample from the materials.
