Landfill gas surveillance
EUR 540,00
When you order, we will send you a final quote for approval which includes an estimate of both equipment rental, customs and shipping.
Rental price for each logger : 540 Euro pr. initiated rental month + VAT.
Description
Details about our new landfill gas logger can be found here.

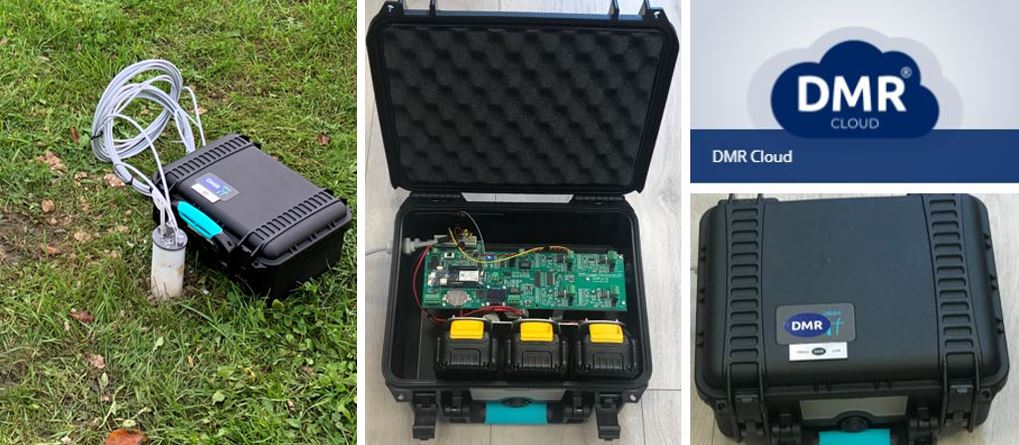

We have 24 landfill gasloggers equipped with different sensor constellations to meet different purposes/demands. As the sensors take up space in the boreholes where they are often installed, we propose to consider which sensors that are important for your specific project instead of ordering with as much sensors as possible.
We currently have 24 landfill loggers for rental with the following sensor constellations:
- Logger 1: CH4 (0-5%).
- Logger 2: O2 (0-25%), CO2 (0-20%), CH4 (2-100%).
- Logger 3: CO2 (0-20%).
- Logger 4: CO2 (0-20%), CH4 (0-5%).
- Logger 5: CO2 (0-20%).
- Logger 6: CO2 (0-20%), CH4 (0-5%), H2S (0-20 ppm).
- Logger 7: CO2 (0-20%), CH4 (0-5%), H2S (0-20 ppm).
- Logger 8: CH4: 0-5%.
- Logger 9: CO2 (0-20%), CH4 (0-5%), H2S (0-20 ppm).
- Logger 10: CO2 (0-20%), CH4 (0-5%).
- Logger 11: CO2 (0-20%).
- Logger 12: CO2 (0-20%), CH4 (0-5%), H2S (0-20 ppm).
- Logger 13: CO2 (0-20%), CH4 (0-5%), H2S (0-20 ppm).
- Logger 14: CO2 (0-20%).
- Logger 15: CO2 (0-20%).
- Logger 16: CO2 (0-20%).
- Logger 17: CO2 (0-20%), CH4 (0-5%).
- Logger 18: CO2 (0-20%), CH4 (0-5%).
- Logger 19: CO2 (0-20%).
- Logger 20: CO2 (0-20%).
- Logger 21: O2 (0-25%), CO2 (0-20%), CH4 (2-100%).
- Logger 22: O2 (0-25%), CO2 (0-20%), CH4 (2-100%).
- Logger 23: O2 (0-25%), CO2 (0-20%), CH4 (2-100%).
- Logger 24: O2 (0-25%), CO2 (0-20%), CH4 (2-100%).
Common logger specifications:
- Sensor for atmospheric conditions (300-1200 mbar).
- Data is sent to DMR-cloud via narrow band.
- Possibility for alarm levels via mail or SMS.
- Powered with rechargeable Dewalt battery.
- Logger frequency is set manually with a jumper on the board.
- Largest diameter of each sensor on 8 m wire: 22 mm.
